Description du produit

7" Wide view capactitive touch screen / ONVIF / Support more than 30 IPcamera image test (Hikvision, Dahua, Honeywell, Samsung etc) / Mobile ClientVIdeo / 12V 2A power output / 5V 2A power bank/ PoE power supply / HDMI output/WIFI

WIFI IPcamera tester is great CCTV tools for IP camera installation andmaintenance, both for Analog, Analog SDI Camera and IP camera test, built invideo level meter, Analog anddigital video signal output,
IP address scan,Ping test, Port flashing, cabletest,
easy to operate Improved IP cameratester, After charging 7~8 hours, normal working time 16 hours, built inWIFI，test Wireless IP Camera;
12V 2A power output for camera , 48V PoE powersupply,
Directly provide PoE power to IP Camera 5V 2A poweroutput(as a powerbank 13000mAh),
HDMI output ; Audio input and output,
Network bandwidthtesting, image 180degree rotating,

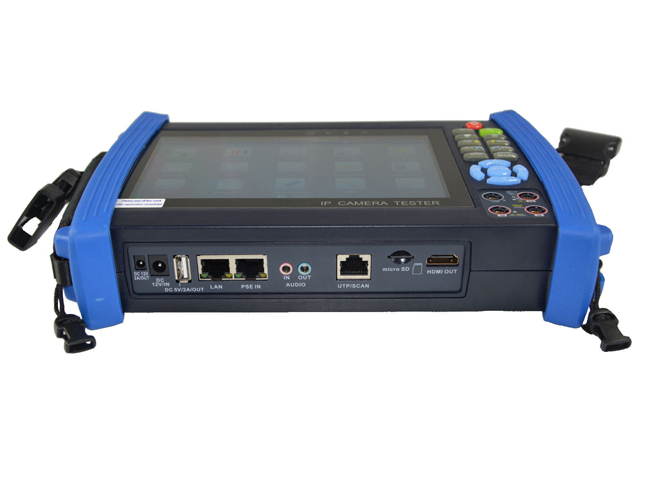

the power and networkports on the top ofthe tester, easy to connect the cable.

Applications:

CCTV system installation and maintenance
Network cabling project installationand maintenance—Dome camera IP cameratesting
Video transmission channel testing —PTZ controller

Features:

7"TFT-LCD touch screen, 1024*600 resolution
Built-in WIFI, 10/ 100m Lan Port
HD SDI camera test
Support ONVIF camera test
Support more than 40 customized IP camera protocols such as DAHUA, KEDA, SAMSUNG, HIKVISION and TIANDY cameras etc.
Support Video Mangement Software to directly test the network cameras.
Display IP camera's image by its genuine resolution, support 1080P.
ONVIF PTZ control / videol record and playback / snapshot / 4 x zoom the image display and video output.
Analog camera images display / PTZ control
Analog video level meter , PEAK level, SYNC level and COLOR BURST measurement.
Output color bars and the testing image of the digital / analog camera
PoE 24W / 12V 2A power output / USB 5V 2A as a power bank
Support 1080P HD video and MKV media files play etc.
HDMI output, 1920*1080P resolution.
PING, IP address scan, port finder and link test etc.
Audio in / out, recording and storage.

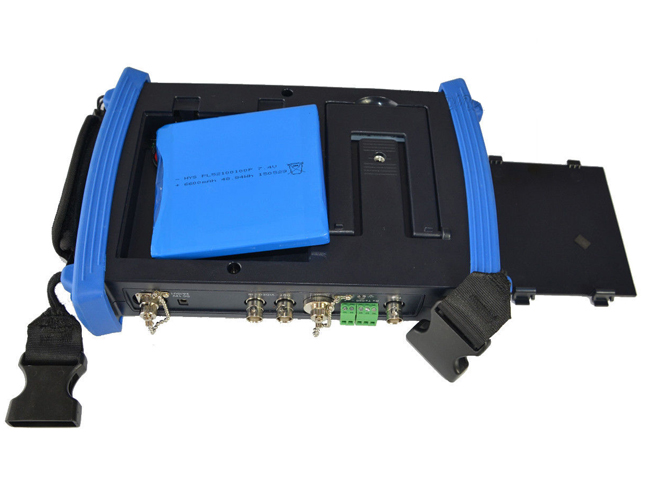

Lithium lon polymeer battery, working time lasts 15 hours.

MODE IPC-8600 Display 7 inch Capacitive touch screen , resolution 1024 (RGB) x600 Network port 10/100M auto adjust,RJ45 WIFI Built in WIFI, speeds150M, receive wireless camera imageetc IP camera type ONVIF, ACTi, Dahua IPC-HFW2100P, Hikvision, DS-2CD864-E13,Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T,Aipuwaton IP5000-BC-13MP/IRS06-13MP, fine-Tida IPC, FSJ BY-1080Q, WEISKY IPCcamera etc. Video level test 1 channel BNC Input & 1 channel Output , NTSC/PAL (Autoadapt) Video level meter PEAK video signal level, SYNC signal level, COLOR BURST chromalevel measurement Zoom Image Support Analog camera and IP camera image zoom /move Snapshots,Video record, Record playback image Screenshots, record , save , view and recordplay back HDMI output 1 channel HDMI output，support 1920*1080P 12V/2Apower output Output DC12V/2A power for camera 5V power output 5V 2A power output, as a mobile phone Power bank PoE power output 48V PoE power output, Max power 24W Audio test 1 channel audio signal input, test whether sound normal, 1channel audio signal, to connect headphone PTZ control Support RS232/RS485 control, Baud 600-115200bps, Compatiblewith more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan,etc Video Signal Generator Output one channel PAL/NTSC color bar video signal for testingmonitor or video cable. (red, green , blue, white and black color ) Network color bar generator Local side PC can login the tester, send the signal by network, test network connection communication whether normal Color bar generation Output one channel PAL/NTSC colorbar video signal for testingmonitor or video cable. UTP cable test Test UTP cable connection status and display in thescreen. Read the number on the screen Data monitor Captures and analyzes the command data from controllingdevice，also can send hexadecimal Network test IP address scan, link scan, Ping test, Quickly search theconnection IP camera and other device IP address Cable scan Search the cable by the audio signal PoE test Measurement POE switch or PSE power supply voltage and cableconnection status Power External Power Supply DC 12V 2A Battery Built-in 7.4 Lithium polymer battery, 6500mAh Rechargeable After charging 7-8 hours, Normal working time 16hours Parameter Operation setting Capacitive touch screen, OSD menu, Chinese/ English Auto off 1-30 (mins) General Working Temperature -10 ---+50 Working Humidity 30%- 90% Dimension / Weight 231 mm x 172mm x 52mm / 1.26KG Package Includes: 1x CCTV Tester 1x Adaptor DC 12V 2A 1x Network Cable Tester 1x Polymer Lithium ion Battery (7.4V DC 6500mAh) 1x BNC Cable 1x RS485 Data Cable 1x Output Power Cable 1x Audio Cable 1x Safety Cord Tool Bag Manual 4G SD Card
